React 2. react-router-dom 라우터 사용

create-react-app환경에서

저번에 만든 튕기는공과 material-ui의 Sign, Album 페이지를 라우팅 해보기로 한다.



@material-ui/core, @material-ui/icons, react-router-dom을 npm으로 설치해준다.



material-ui에서 제공하는 template에서 Album과 Sign을 가져온다

https://material-ui.com/getting-started/templates/



Album.js

import React from 'react';
import AppBar from '@material-ui/core/AppBar';
import Button from '@material-ui/core/Button';
import CameraIcon from '@material-ui/icons/PhotoCamera';
import Card from '@material-ui/core/Card';
import CardActions from '@material-ui/core/CardActions';
import CardContent from '@material-ui/core/CardContent';
import CardMedia from '@material-ui/core/CardMedia';
import CssBaseline from '@material-ui/core/CssBaseline';
import Grid from '@material-ui/core/Grid';
import Toolbar from '@material-ui/core/Toolbar';
import Typography from '@material-ui/core/Typography';
import { makeStyles } from '@material-ui/core/styles';
import Container from '@material-ui/core/Container';
import Link from '@material-ui/core/Link';

function Copyright() {
  return (
    <Typography variant="body2" color="textSecondary" align="center">
      {'Copyright © '}
      <Link color="inherit" href="https://material-ui.com/">
        Your Website
      </Link>{' '}
      {new Date().getFullYear()}
      {'.'}
    </Typography>
  );
}

const useStyles = makeStyles((theme) => ({
  icon: {
    marginRight: theme.spacing(2),
  },
  heroContent: {
    backgroundColor: theme.palette.background.paper,
    padding: theme.spacing(8, 0, 6),
  },
  heroButtons: {
    marginTop: theme.spacing(4),
  },
  cardGrid: {
    paddingTop: theme.spacing(8),
    paddingBottom: theme.spacing(8),
  },
  card: {
    height: '100%',
    display: 'flex',
    flexDirection: 'column',
  },
  cardMedia: {
    paddingTop: '56.25%', // 16:9
  },
  cardContent: {
    flexGrow: 1,
  },
  footer: {
    backgroundColor: theme.palette.background.paper,
    padding: theme.spacing(6),
  },
}));

const cards = [1, 2, 3, 4, 5, 6, 7, 8, 9];

export default function Album() {
  const classes = useStyles();

  return (
    <React.Fragment>
      <CssBaseline />
      <AppBar position="relative">
        <Toolbar>
          <CameraIcon className={classes.icon} />
          <Typography variant="h6" color="inherit" noWrap>
            Album layout
          </Typography>
        </Toolbar>
      </AppBar>
      <main>
        {/* Hero unit */}
        <div className={classes.heroContent}>
          <Container maxWidth="sm">
            <Typography component="h1" variant="h2" align="center" color="textPrimary" gutterBottom>
              Album layout
            </Typography>
            <Typography variant="h5" align="center" color="textSecondary" paragraph>
              Something short and leading about the collection below—its contents, the creator, etc.
              Make it short and sweet, but not too short so folks don&apos;t simply skip over it
              entirely.
            </Typography>
            <div className={classes.heroButtons}>
              <Grid container spacing={2} justify="center">
                <Grid item>
                  <Button variant="contained" color="primary">
                    Main call to action
                  </Button>
                </Grid>
                <Grid item>
                  <Button variant="outlined" color="primary">
                    Secondary action
                  </Button>
                </Grid>
              </Grid>
            </div>
          </Container>
        </div>
        <Container className={classes.cardGrid} maxWidth="md">
          {/* End hero unit */}
          <Grid container spacing={4}>
            {cards.map((card) => (
              <Grid item key={card} xs={12} sm={6} md={4}>
                <Card className={classes.card}>
                  <CardMedia
                    className={classes.cardMedia}
                    image="https://source.unsplash.com/random"
                    title="Image title"
                  />
                  <CardContent className={classes.cardContent}>
                    <Typography gutterBottom variant="h5" component="h2">
                      Heading
                    </Typography>
                    <Typography>
                      This is a media card. You can use this section to describe the content.
                    </Typography>
                  </CardContent>
                  <CardActions>
                    <Button size="small" color="primary">
                      View
                    </Button>
                    <Button size="small" color="primary">
                      Edit
                    </Button>
                  </CardActions>
                </Card>
              </Grid>
            ))}
          </Grid>
        </Container>
      </main>
      {/* Footer */}
      <footer className={classes.footer}>
        <Typography variant="h6" align="center" gutterBottom>
          Footer
        </Typography>
        <Typography variant="subtitle1" align="center" color="textSecondary" component="p">
          Something here to give the footer a purpose!
        </Typography>
        <Copyright />
      </footer>
      {/* End footer */}
    </React.Fragment>
  );
}



Sign.js

import React from 'react';
import Avatar from '@material-ui/core/Avatar';
import Button from '@material-ui/core/Button';
import CssBaseline from '@material-ui/core/CssBaseline';
import TextField from '@material-ui/core/TextField';
import FormControlLabel from '@material-ui/core/FormControlLabel';
import Checkbox from '@material-ui/core/Checkbox';
import Link from '@material-ui/core/Link';
import Grid from '@material-ui/core/Grid';
import Box from '@material-ui/core/Box';
import LockOutlinedIcon from '@material-ui/icons/LockOutlined';
import Typography from '@material-ui/core/Typography';
import { makeStyles } from '@material-ui/core/styles';
import Container from '@material-ui/core/Container';

function Copyright() {
  return (
    <Typography variant="body2" color="textSecondary" align="center">
      {'Copyright © '}
      <Link color="inherit" href="https://material-ui.com/">
        Your Website
      </Link>{' '}
      {new Date().getFullYear()}
      {'.'}
    </Typography>
  );
}

const useStyles = makeStyles((theme) => ({
  paper: {
    marginTop: theme.spacing(8),
    display: 'flex',
    flexDirection: 'column',
    alignItems: 'center',
  },
  avatar: {
    margin: theme.spacing(1),
    backgroundColor: theme.palette.secondary.main,
  },
  form: {
    width: '100%', // Fix IE 11 issue.
    marginTop: theme.spacing(1),
  },
  submit: {
    margin: theme.spacing(3, 0, 2),
  },
}));

export default function SignIn() {
  const classes = useStyles();

  return (
    <Container component="main" maxWidth="xs">
      <CssBaseline />
      <div className={classes.paper}>
        <Avatar className={classes.avatar}>
          <LockOutlinedIcon />
        </Avatar>
        <Typography component="h1" variant="h5">
          Sign in
        </Typography>
        <form className={classes.form} noValidate>
          <TextField
            variant="outlined"
            margin="normal"
            required
            fullWidth
            id="email"
            label="Email Address"
            name="email"
            autoComplete="email"
            autoFocus
          />
          <TextField
            variant="outlined"
            margin="normal"
            required
            fullWidth
            name="password"
            label="Password"
            type="password"
            id="password"
            autoComplete="current-password"
          />
          <FormControlLabel
            control={<Checkbox value="remember" color="primary" />}
            label="Remember me"
          />
          <Button
            type="submit"
            fullWidth
            variant="contained"
            color="primary"
            className={classes.submit}
          >
            Sign In
          </Button>
          <Grid container>
            <Grid item xs>
              <Link href="#" variant="body2">
                Forgot password?
              </Link>
            </Grid>
            <Grid item>
              <Link href="#" variant="body2">
                {"Don't have an account? Sign Up"}
              </Link>
            </Grid>
          </Grid>
        </form>
      </div>
      <Box mt={8}>
        <Copyright />
      </Box>
    </Container>
  );
}



Ball은 전에 작성한 포스트에 있다.





Router.js

import React from 'react';
import {Route} from 'react-router-dom';
import Album from './components/Album';
import Sign from './components/Sign';
import Ball from './Ball';

class Router extends React.Component {
    render(){
        return (
            <div>
                <Route exact path="/" component={Sign}/>
                <Route path="/Album" component={Album}/>
                <Route path="/Ball" component={Ball}/>
            </div>
        );
    }
}

export default Router;

<Route exact path:"/" conponent={Sign}/>에서 exact가 붙으면 path의 경로와 정확히 일치해야 라우팅이 된다.

만약에, "/" 경로에 exact를 하지않으면 그 밑의 "/Album", "/Ball"에도 "/"가 포함되어있어 {Sign}이 같이 렌더링된다



Root.js

import React from 'react';
import {BrowserRouter} from 'react-router-dom';
import Router from './Router';

const Root = () => (
    <BrowserRouter>
        <Router/>
    </BrowserRouter>
);

export default Root;



index.js

import React from 'react';
import ReactDOM from 'react-dom';
import './index.css';
import reportWebVitals from './reportWebVitals';
import Root from './Root';

// ReactDOM.render(
//   <Ball />,
//   document.getElementById('root')
// );

ReactDOM.render(
  <Root />,
  document.getElementById('root')
);

// If you want to start measuring performance in your app, pass a function
// to log results (for example: reportWebVitals(console.log))
// or send to an analytics endpoint. Learn more: https://bit.ly/CRA-vitals
reportWebVitals();



index.js에서 Root를 import해서 렌더링한다.

라우팅할때 구조는

<BrowserRouter>

        <Route path="~~~" component=~~~ />

         ...

</BrowserRouter>

형식으로 BrowserRouter 안에 Route들로 구성되야 작동하는듯 하다. Route만 사용했을때는 작동되지않았다.

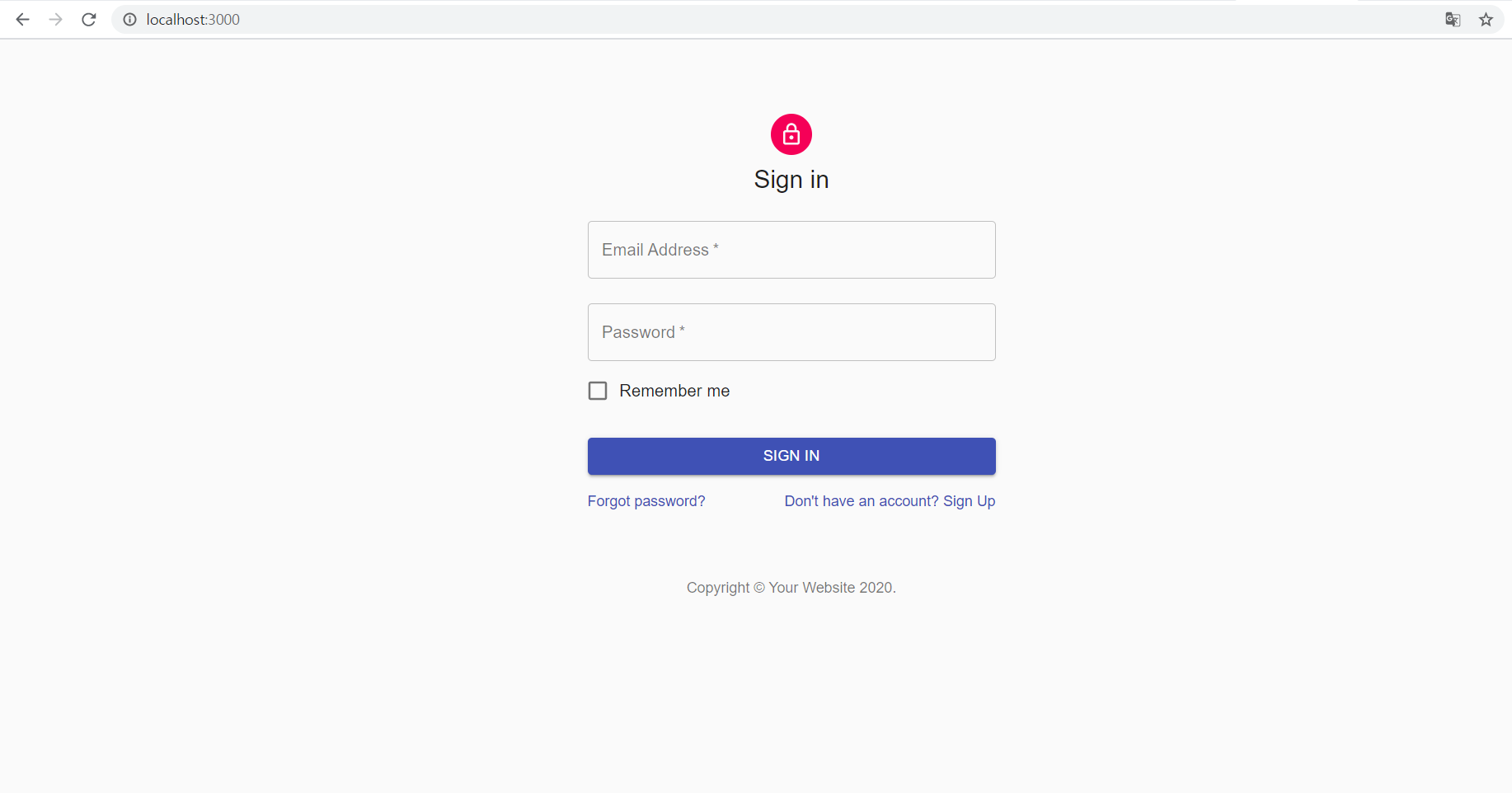

http://localhost:3000/

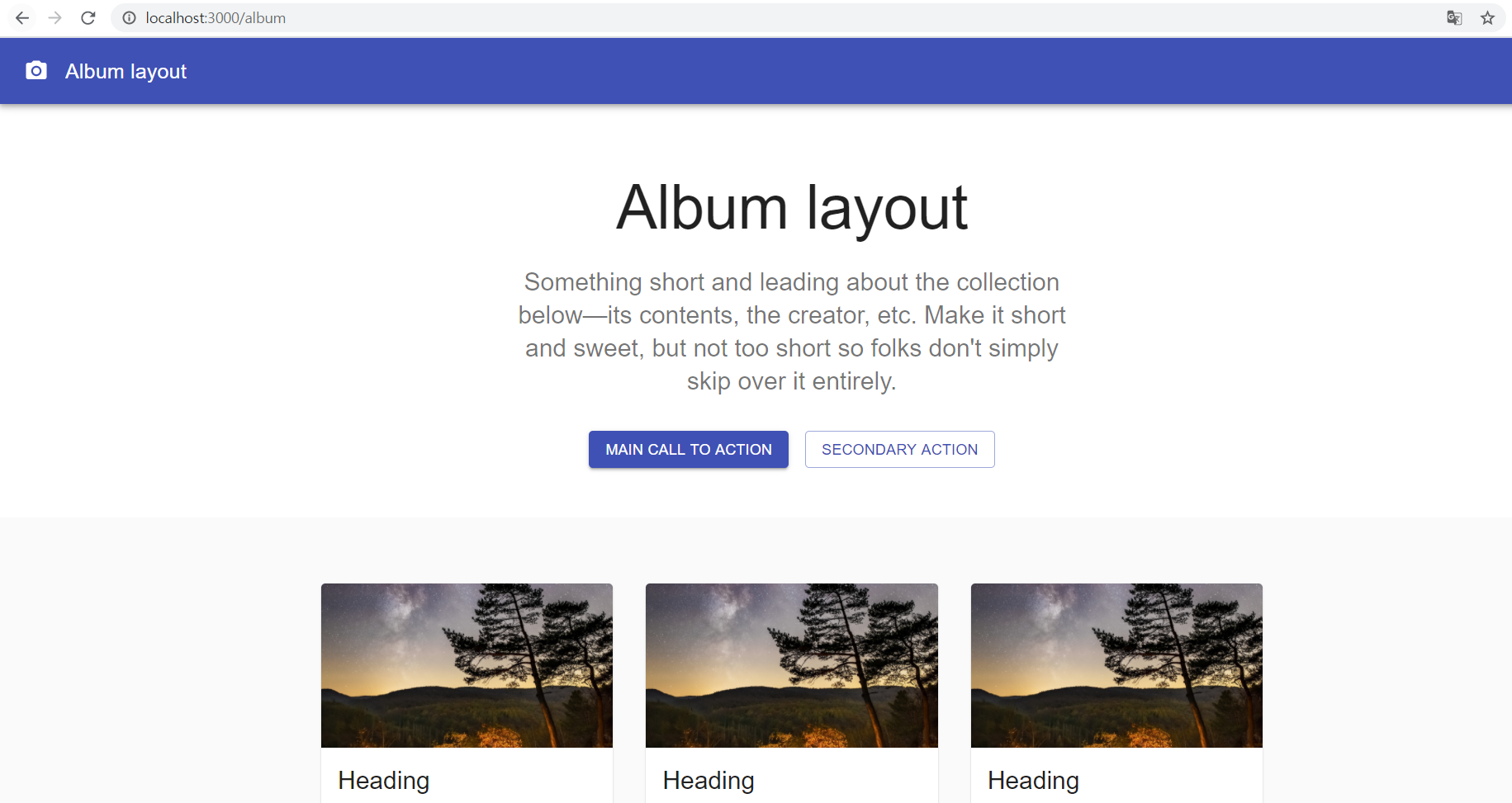

http://localhost:3000/album

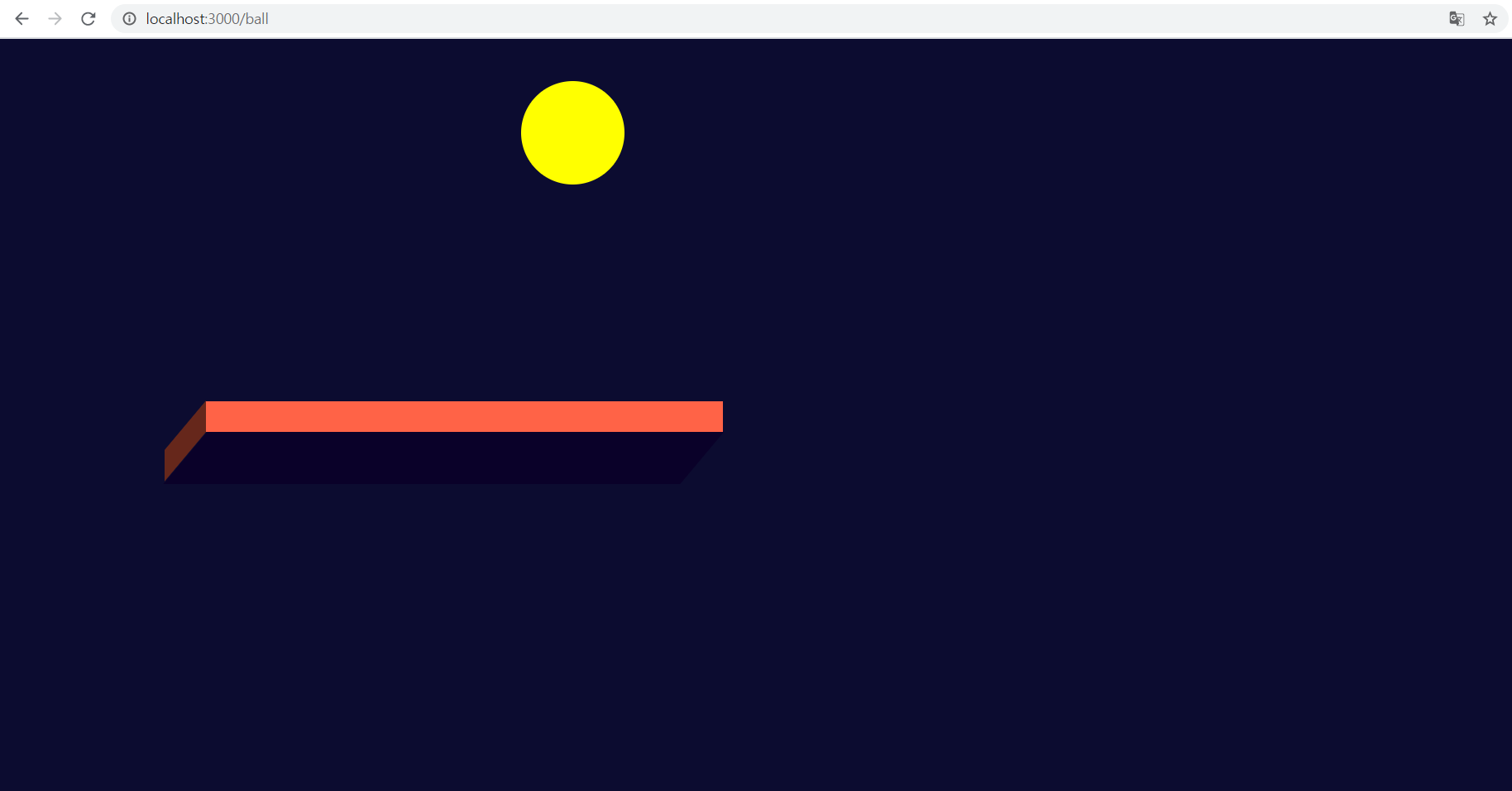

http://localhost:3000/ball



라우팅 잘된다.

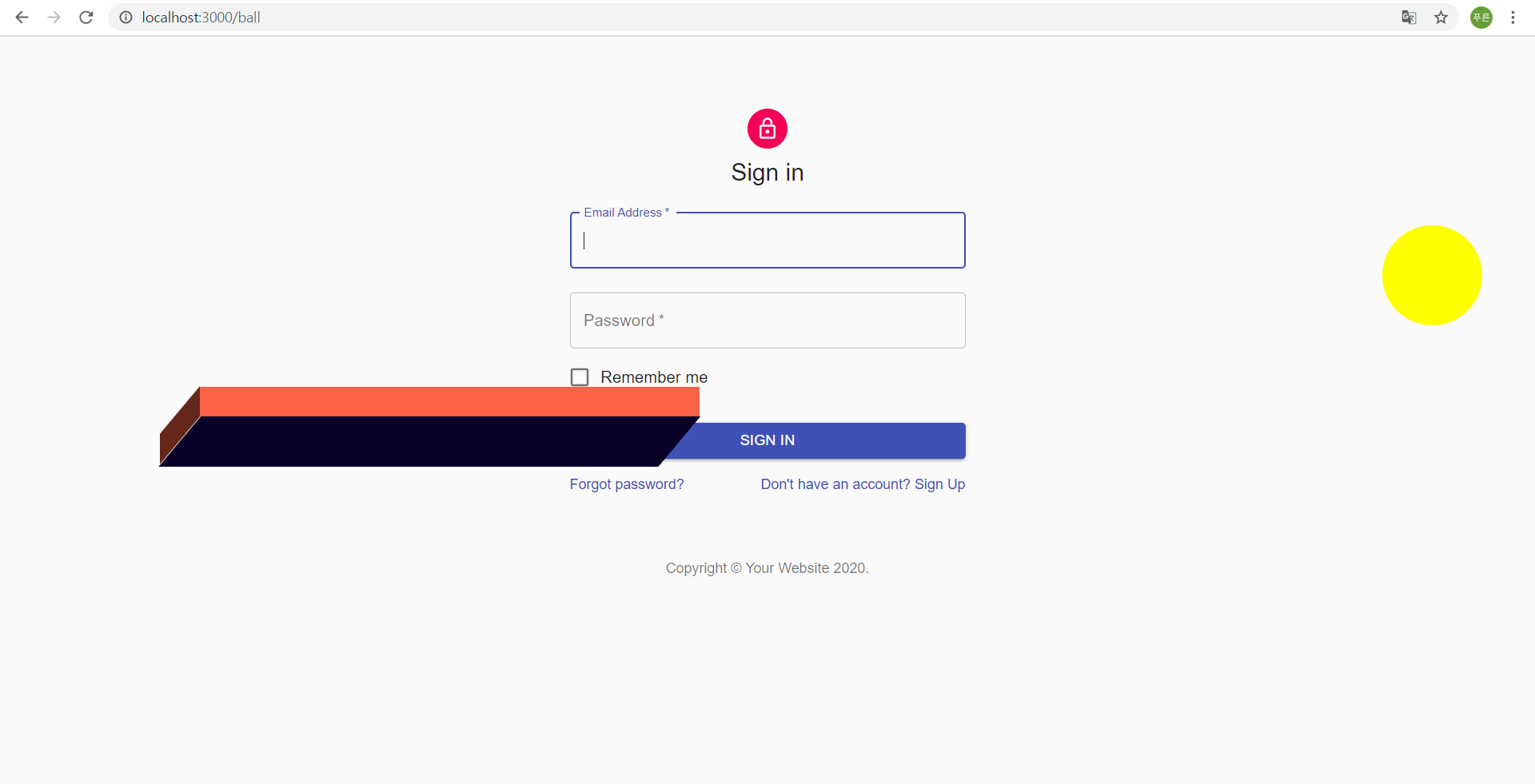

"/" Route에 exact를 안하면



이렇게 같이 렌더링된다.



출처 : material-ui, velopert
